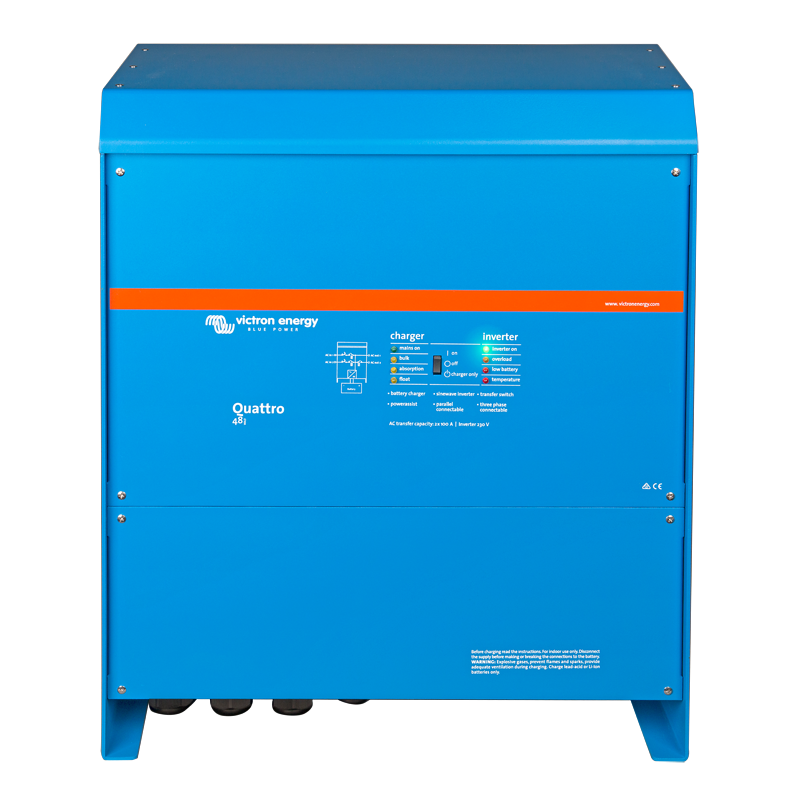

Victron Quattro 48/3000/35-50/50 120V VE.Bus

5-year warranty

Victron Quattro 48/3000/35-50/50 120V VE.Bus

QUA483021100

Victron Quattro Inverter/Charger Lithium Ion battery compatible

Two AC inputs with integrated transfer switch
The Quattro can be connected to two independent AC sources, for example the public grid and a generator, or two generators. The Quattro will automatically connect to the active source.

Two AC Outputs

The main output has no-break functionality. The Quattro takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, like a water heater for example, can be connected to this output.

Information:

Datasheet
