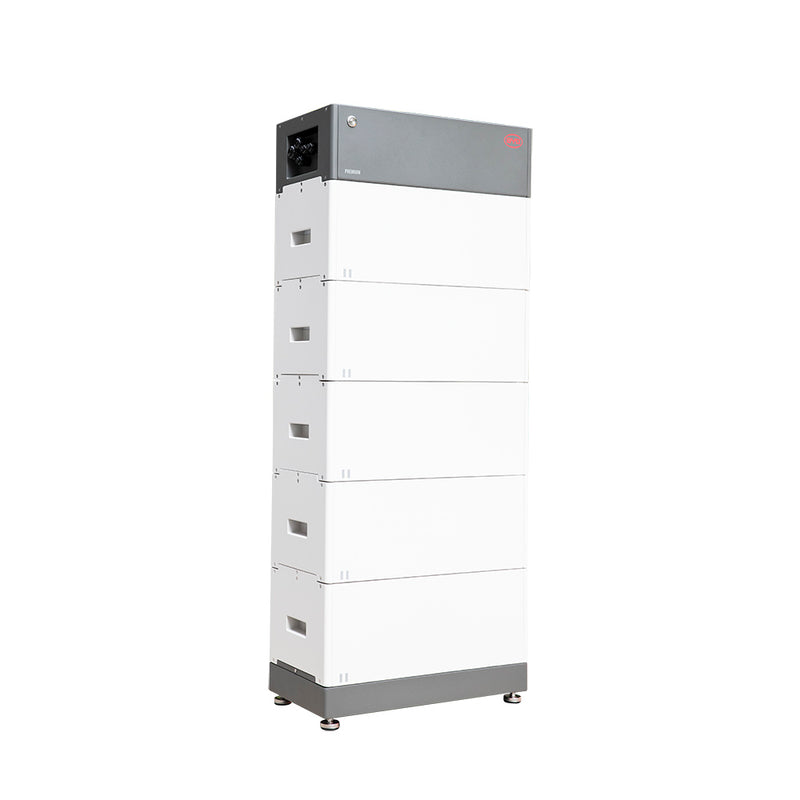

BYD Battery-Box Premium HVM 13.8

BYD Battery-Box Premium HVM 13.8

• Battery Module: HVM (2.76 kWh, 51.2 V, 38 kg)
• Number of Modules: 5
• Usable Energy [1]: 13.80 kWh
• Max Output Current [2]: 50 A
• Peak Output Current [2]: 75 A, 5 s
• Nominal Voltage: 256 V
• Operating Voltage: 200~300 V
• Dimensions (H/W/D): 1411 x 585 x 298 mm
• Weight: 205 kg

BYD BATTERY-BOX PREMIUM HVM

One Battery-Box Premium HVM is composed of 3 to 8 HVM battery modules that are connected in series to achieve a usable capacity of 8.3 to 22.1 kWh. Additionally, direct parallel connection of up to 3 identical Battery-Box Premium HVM allows a maximum capacity of 66.2 kWh.Ability to scale by adding HVM modules or parallel HVM stacks later.

More information:

• BYD Battery-Box Premium HVM Datasheet
• BYD Battery-Box Premium HVM Compatible Inverter List
• BYD Battery-Box Premium HVM Limited Warranty
• BYD Battery-Box Premium HVM Quick Start Guide
